Cam Drive Magnetic Linear Mover

ATS OMNITRAK™

Can be designed with fully synchronous, asynchronous, or continuous motion segments within one cell. Highly customizable to almost any application—using servos, mechanical cams, or pneumatic cylinders

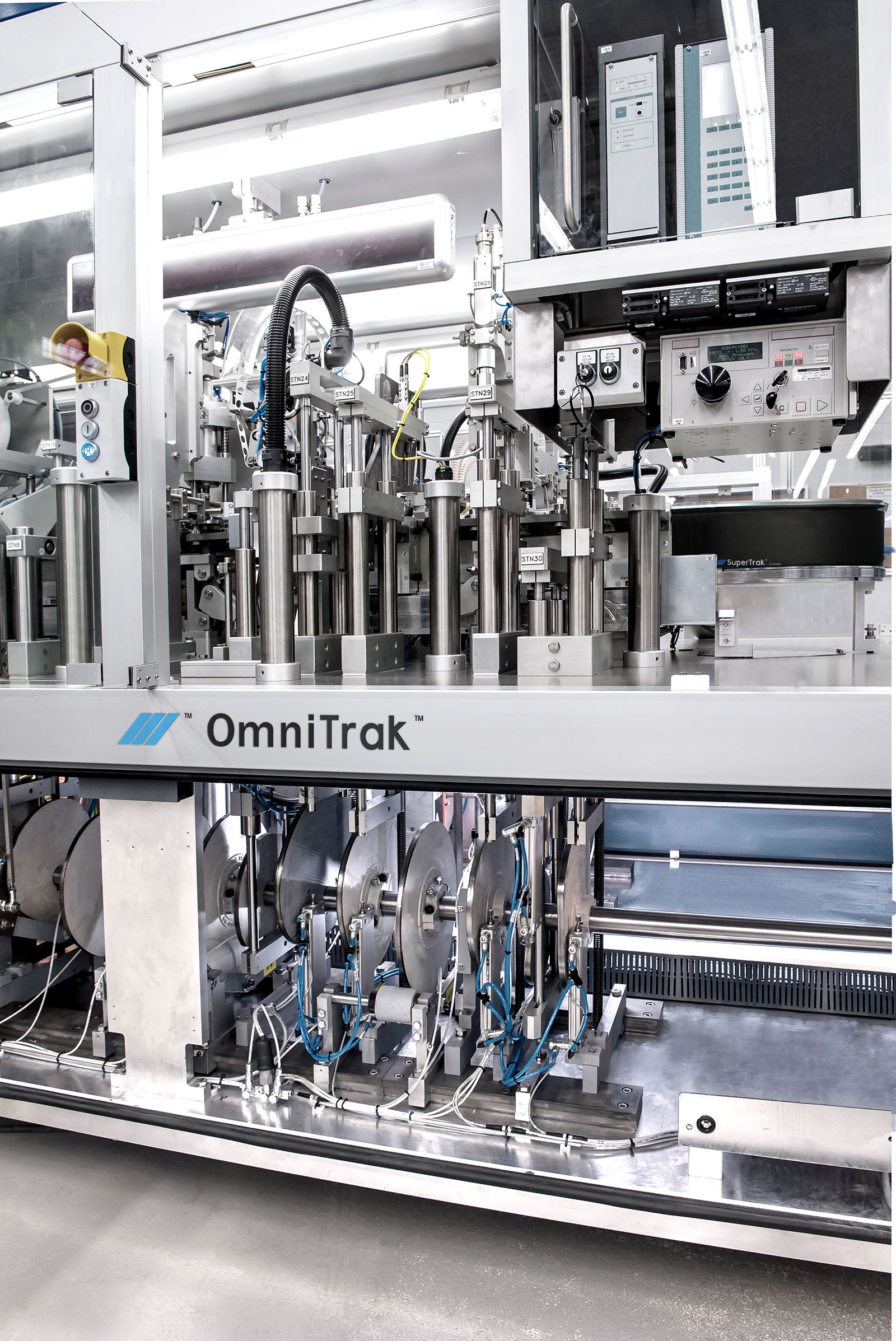

ATS OmniTrak

An assembly platform that combines the precision of cam-controlled workstations and the flexibility of servo-driven workpiece carriers offering high flexibility, lower maintenance

  • Able to mix 1-one up stations with multi-up seamlessly on the pallet loop
  • Low floor space requirement
  • Low noise level down to 70dBa (process dependent)

OVERVIEW

SPECS

Features

  • Fully assembled, integrated and tested platform, ready for plug-and-play operation
  • Expandable I/O
  • Low noise level down to 70dBa (process dependent)
  • Options: Synchronous, Asynchronous, Continuous motion

Applications

  • Gentle product handling
  • Station cam tooling can be synchronized to/from pallet motion
  • Expandable at the station and module level

Recommended For

  • Applications where many complex transformations are required in the assembly process
  • Glass or plastic syringes, injection pens (pen body, pen needle)

Specs

  • Cycle rate: Typically 30 – 60 up to 200 cycles per minute (CPM)
  • Pallet deck: Fully customizable
  • Customizable pallet design allows pallets to carry a number of different components

  • Ability to combine 1-up stations with multi-up (2, 3, 4) stations seamlessly on the pallet loop
  • Low floor space requirement
  • Size: Track configurable in 1m segments
  • Low maintenance cost and duration

  • Interfaces: Ethernet IP, Powerlink, Profinet, Interfaces: Ethernet IP, Powerlink, Profinet, EtherCAT
  • Service and maintenance packages available
  • Synchronous/asynchronous/continuous motion platform options
  • Positional accuracy of ± 0.01mm

Key Benefits

An optimized solution that is robust, reliable, quiet, cost-efficient and easy to maintain

Fewer Moving Parts

The OmniTrak platform requires less maintenance, resulting in reduced wear on the machine and increased cost savings for your company

Cam-driven Processes

Embedded control of servo motors with support for electronic camming; combination cam-driven reliability with asynchronous programmability and flexibility

Customizable Software

The ability to run synchronous, asynchronous and continuous motion processes on the same platform. Decouple variable processes and then resynchronize at the individual station level

Configurability

Create exclusive machine layouts tailored to meet your individual needs; optimize by station (# UP), number of pallets, mode of operation, station index time

Other Assembly Solutions

Autoinjector Platform

Pre-assembly to final assembly, semi-automated to fully automated systems tailored to specific requirements

Syringe Platform

Linear motion platforms that enable synchronous and asynchronous processing and configurable transfer systems for aseptic environments

ATS Jetwing

Introducing and removing components, subassemblies, and finished product is a key aspect of an efficient operation

ATS OmniTrak

Product quality control and assurance through smart test, inspection, and digital monitoring

ATS Discovery

Product quality control and assurance through smart test, inspection, and digital monitoring

An assembly platform offering high flexibility, lower maintenance

Our engineers develop customized or standard solutions based on our tried and trusted platforms. Let us help you find the ideal solution.
